3.3 Setting Program Position



When the major display is program position, user could set the current position to zero, half, or any value of program position.


The coordinate offset is the difference between machine position and program position. When moving to the coordinate which reference to the workpiece, user could set current position to the wanted program position.

：

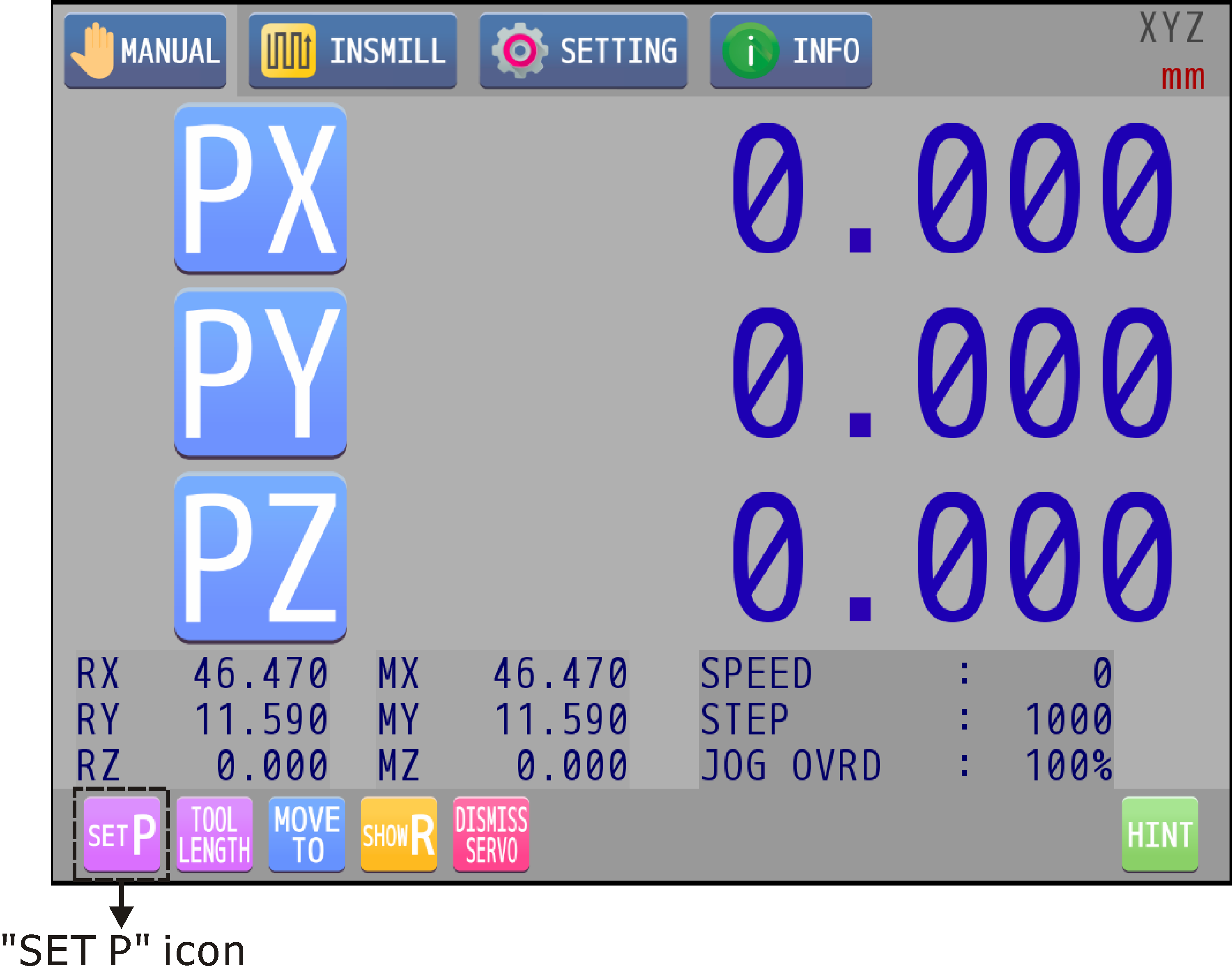

Touch "SET P" icon below.

：

The axis-to-set dialog will appear at this time.

：

Knob rotating or touch can select the axis to set.

：

Press key 1 to select current axis.

：

Press key 2 to quit this operation.

：

If X-axis is selected and key 1 is pressed, the dialog of program position modification mode will appear. the operation method is the same as the axis-to-set dialog, user can set the chosen axial program position to zero, half of the current program position, or any value.

：

If the "=?" item is selected, a program position input window will pop up.

：

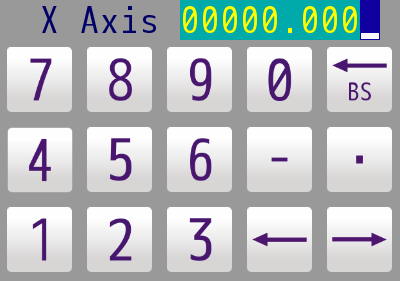

Use the keyboard to enter value.

：

Press key 1 to confirm the entered program position.

：

Press key 2 to quit this operation.


Note:

If the axial icon is flashing, the selection (= 0, = 1/2, =?) will pop up directly.
