3.4 Reset Relative Position
The function of relative position is to measure the size of workpiece or some geometric feature like a ruler by moving the axes. So the user could reset it to zero as the start of measurement. It could be applied when the major display is relative position.
|
： |

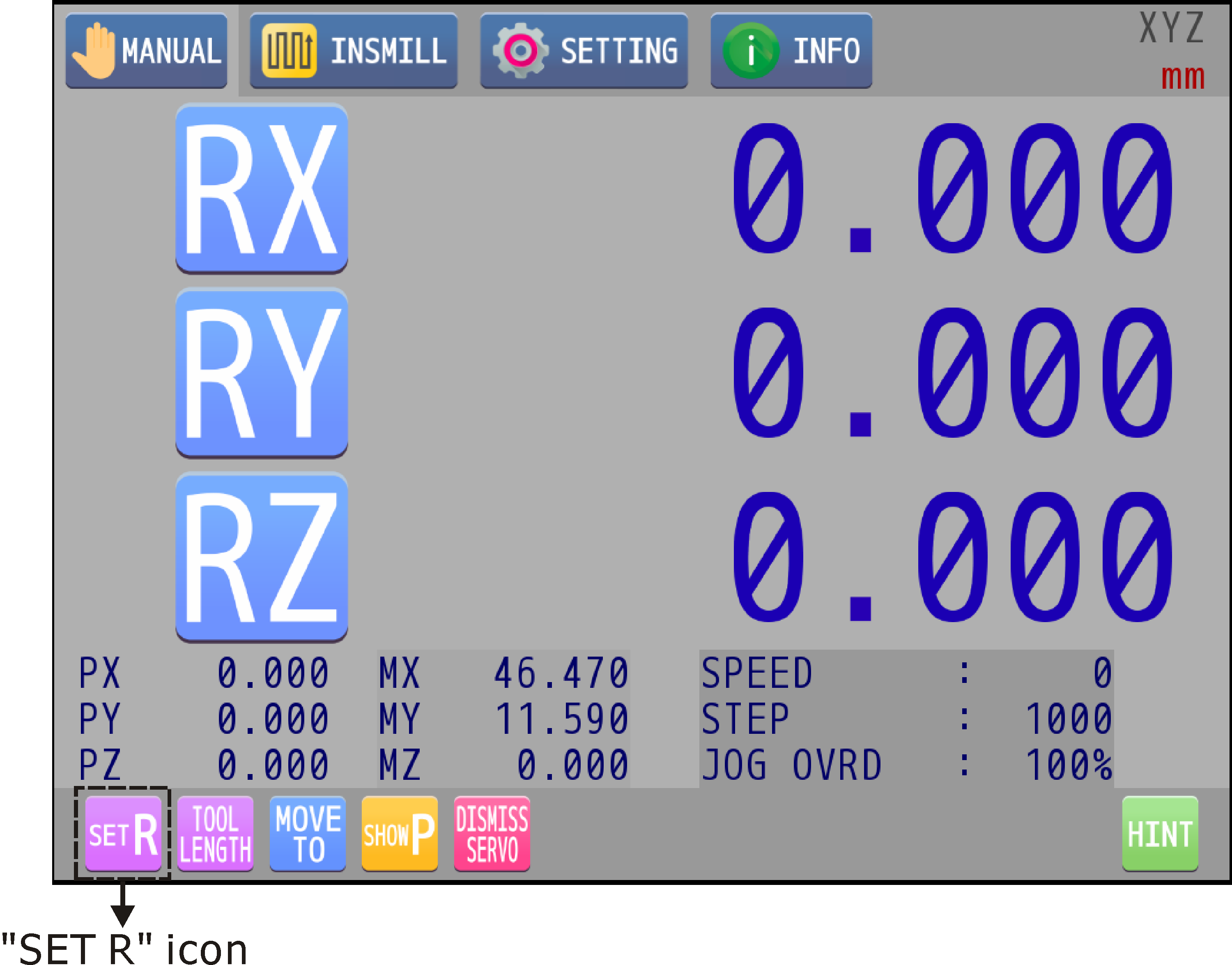

Touch "SET R" icon below. |
|
： |
The axis-to-reset dialog will appear at this time. |
|
： |
Knob rotating or touch can select the wanted axis. |
|
： |
Press key 1 to confirm the selection of axis. |
|
： |
Press key 2 to quit this operation. |
|
： |

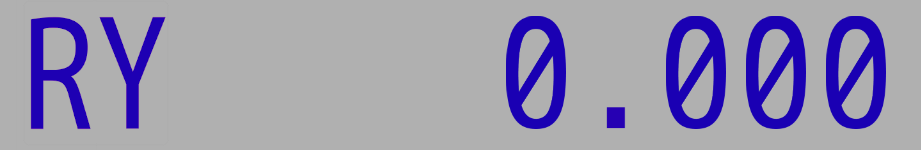

If Y axis is selected, the value of RY will be reset to 0. |
Note: |
If the axial icon is flashing, the axial relative position will be reset directly. |
