3 Manual

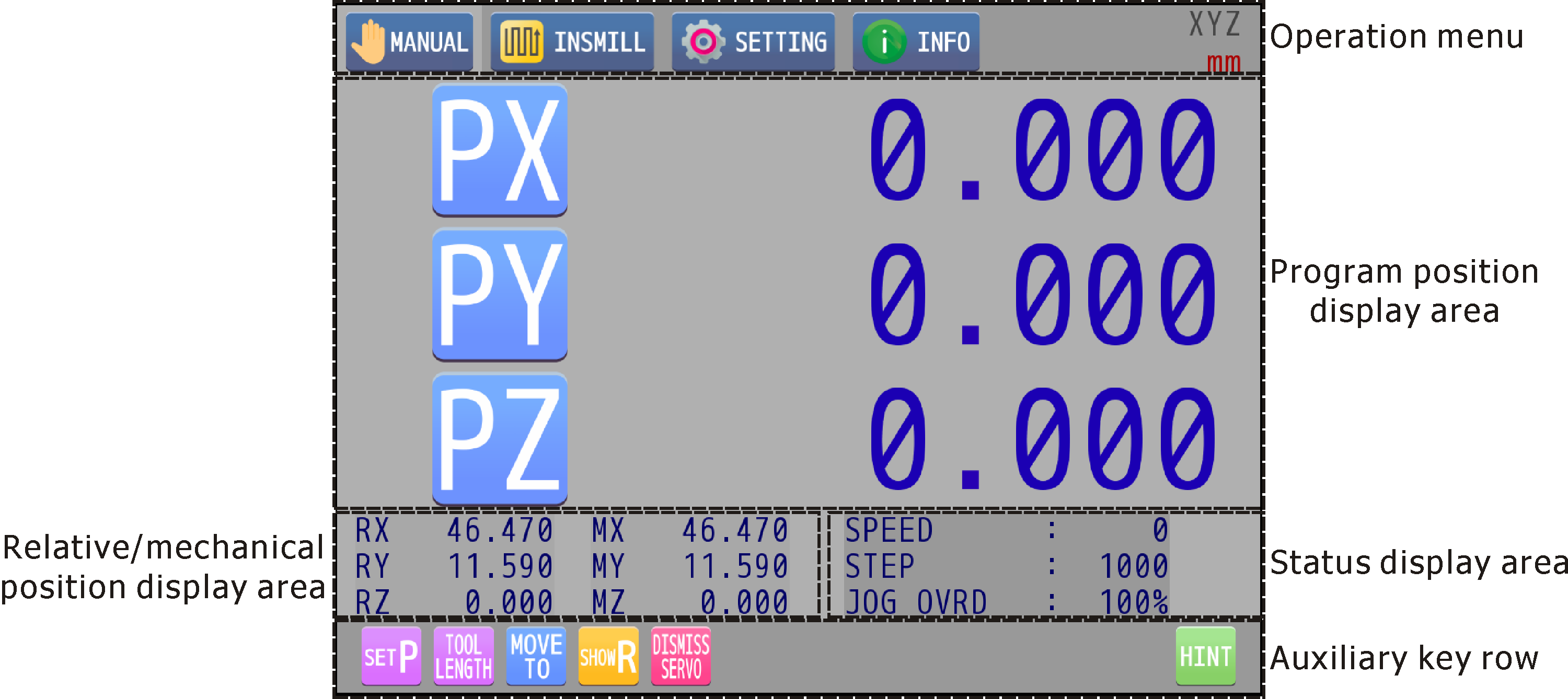

Manual page provides user manually moving ability of axes, current position information, and the function of modifying program coordinate offset.

Status display area

Status display area shows current execution status related to manual moving, as shown below.

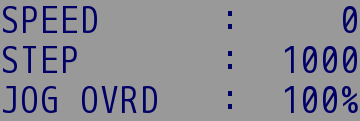

General Version (XY/XYZ)

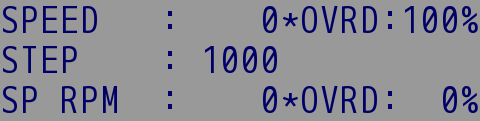

Advanced Version (XYZS)

SPEED	：Current axial movement speed.
STEP	：Current wheel step.
JOG OVRD	：Current speed override.
SP RPM	：Current spindle speed command.
SP OVRD	：Current spindle speed override.
