INCON–M83 User Manual

：

Touch "MOVE TO" icon below.

：

The axis-to-move dialog will appear at this time.

：

Rotate the knob or touch to select the desired axis.

：

Press key 1 to select current axis.

：

Press key 2 to quit this operation.

：

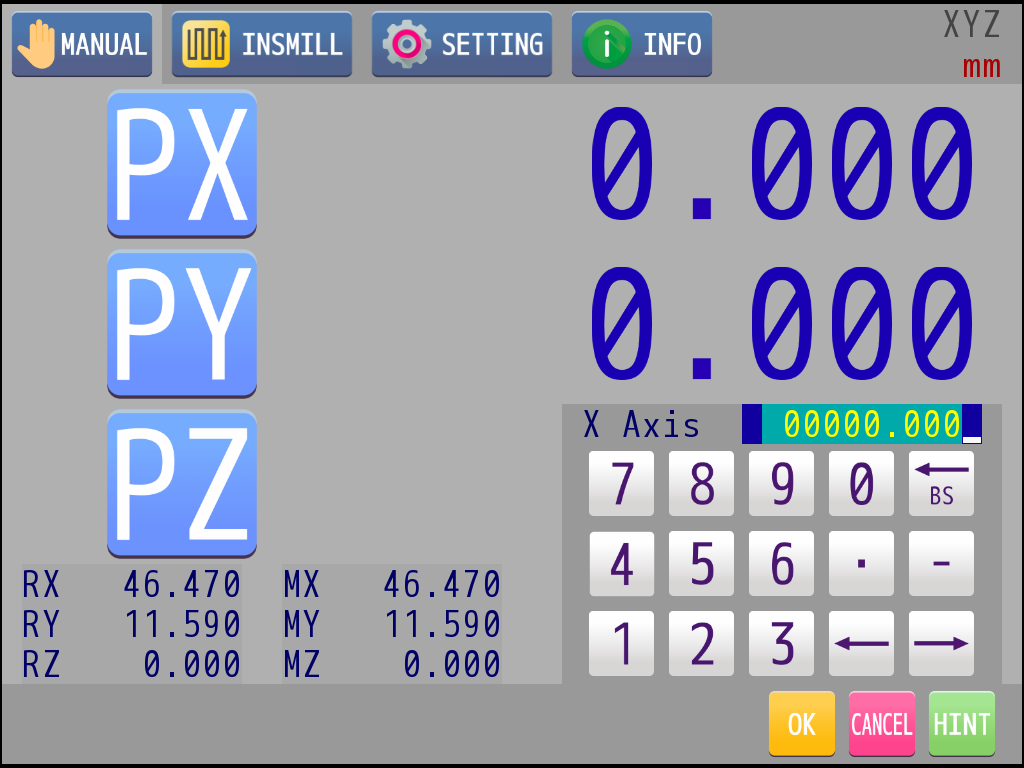

The target position input window pops up.

：

Use the keyboard to enter value.

：

Press key 1 to confirm the entered position.

：

Press key 2 to quit this operation.

：

After pressing key 1, an override selection menu appears.

：

Rotate the knob or touch to select the override you want.

：

Press key 1 to confirm the selection of the override.

：

Press key 2 to quit this operation.

：

Knob rotating can increase or decrease the override during the movement.
