2.5 Major Pages of XYZS

TPCU with XYZS configuration has one more page, which is program page. Furthermore, manual page is patched up with more I/O control features.

Following is the description of each page.

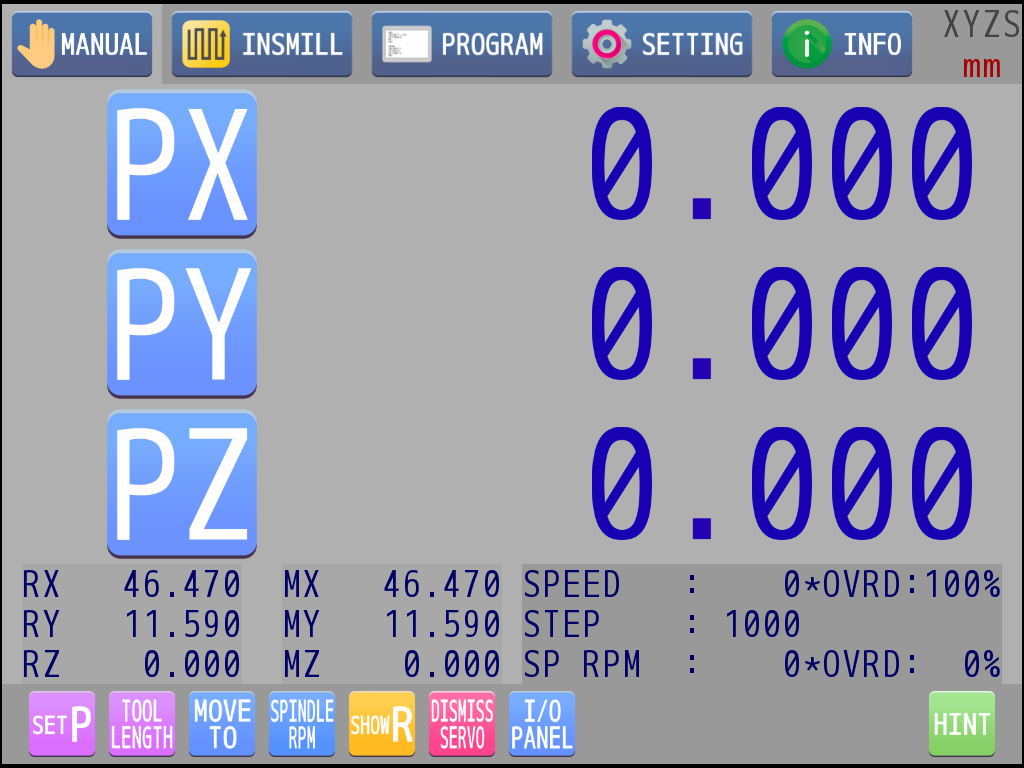

Manual page

In addition to the basic manual mode, it can also control the spindle speed, light on/off, coolant on/off, and air blower on/off.

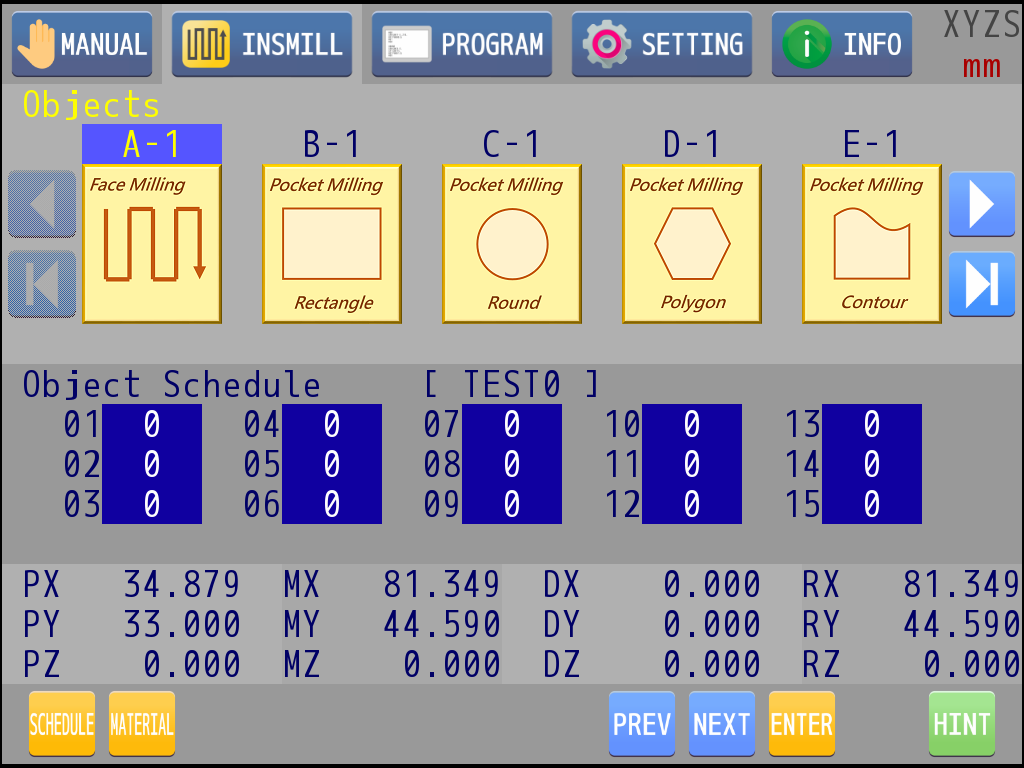

INSMILL page

The simple milling objects with graphical guide and programmable object schedule simplify the procedure of operation. Each milling object has four different entities to store different parameters.

INSMILL helps the operators fill in the geometry and manufacture parameters intuitively with graphical guide. And it contains commonly used milling, pocketing, and drilling process of various shapes.

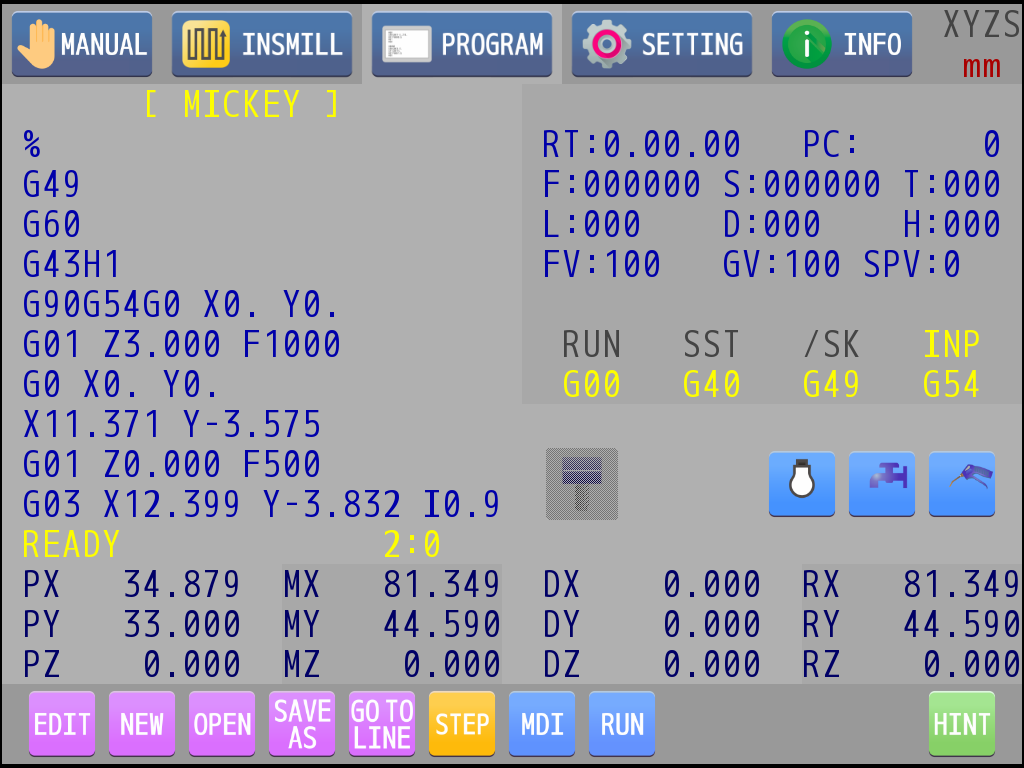

Program page

Edit and execute standard CNC programs.

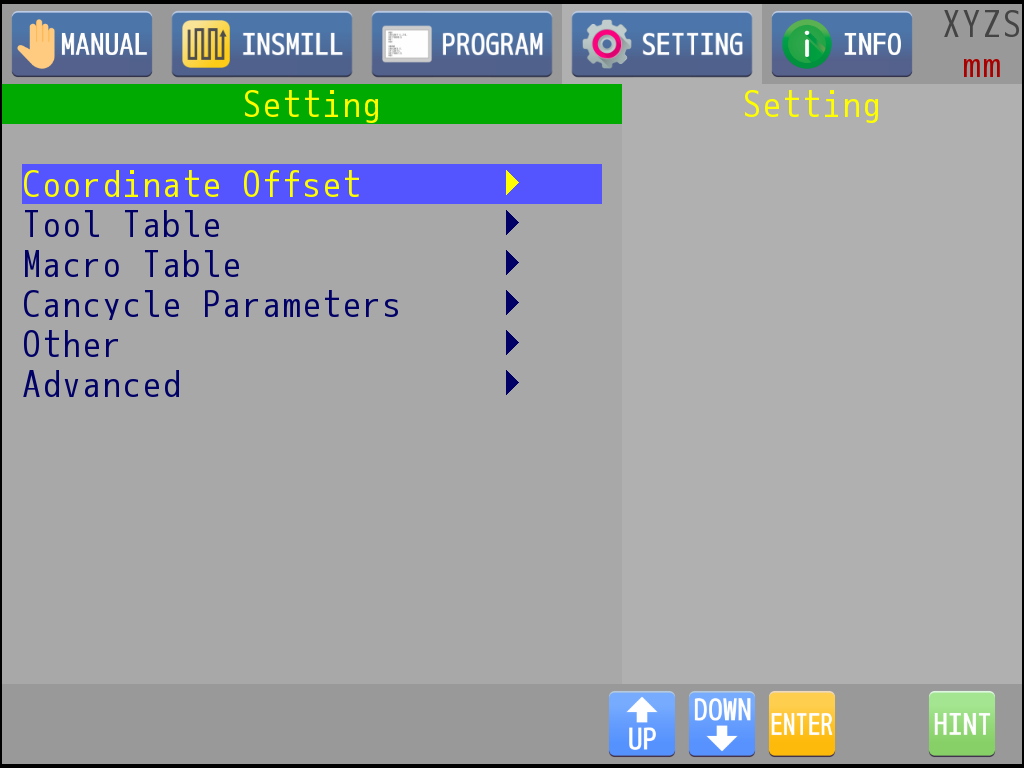

Setting page

Coordinate offset, tool table, cancycle parameters, XYZ axes motor parameter setting, system language switching, and system management.

INFO page

Provide TPCU system version, boot and processing time record, event record, help, system diagnosis and other information.
