INCON–M83 User Manual

：

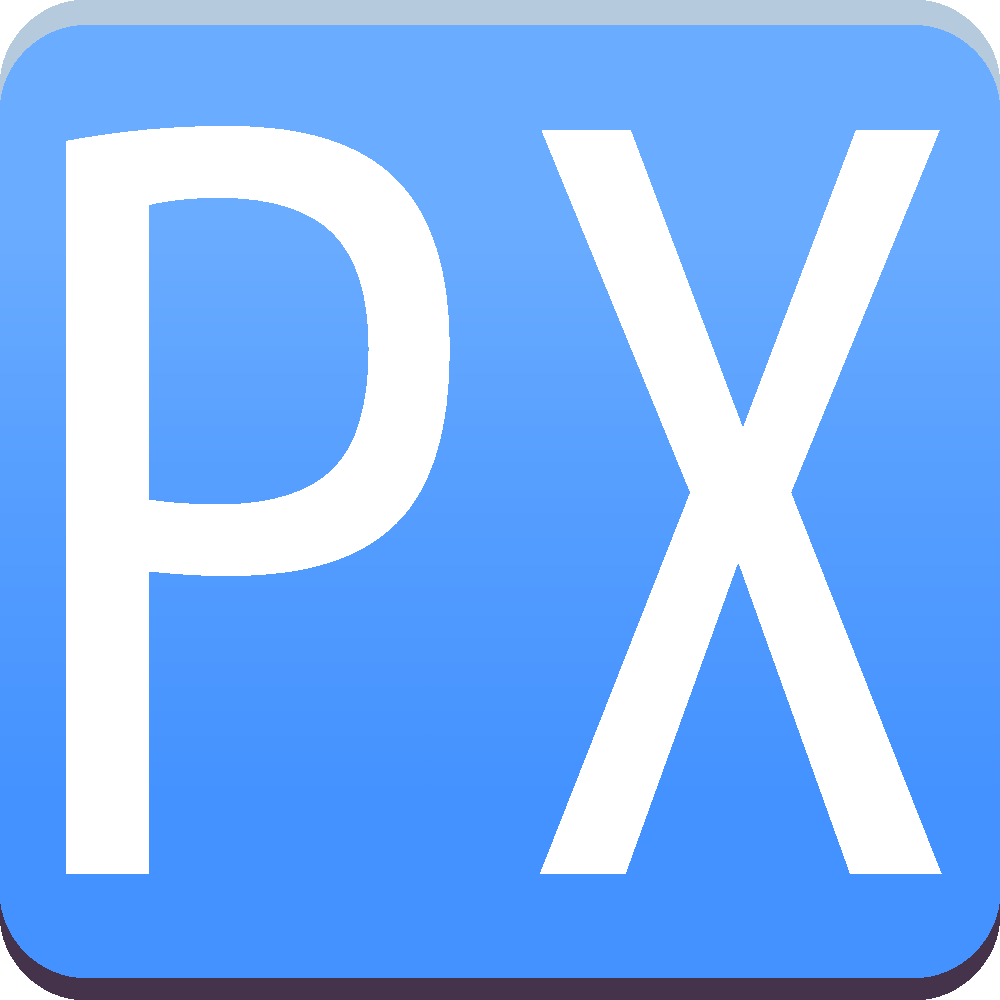

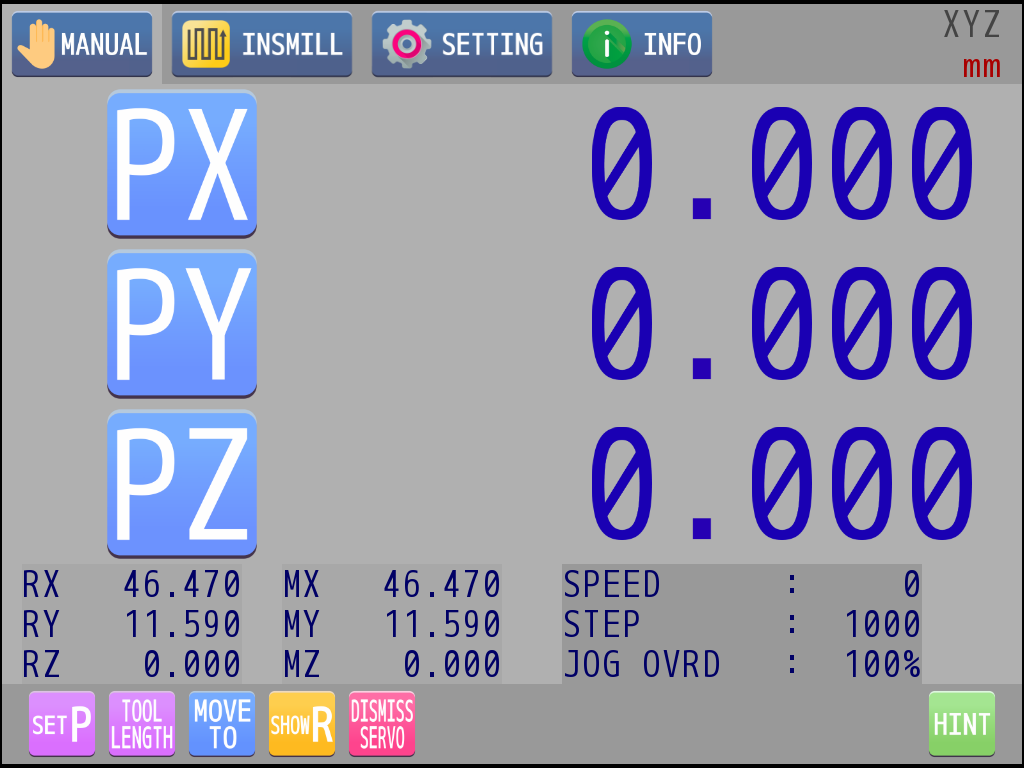

Take axis X as an example. Touch the axis icon. It means the axis is ready while the icon starts blinking.

：

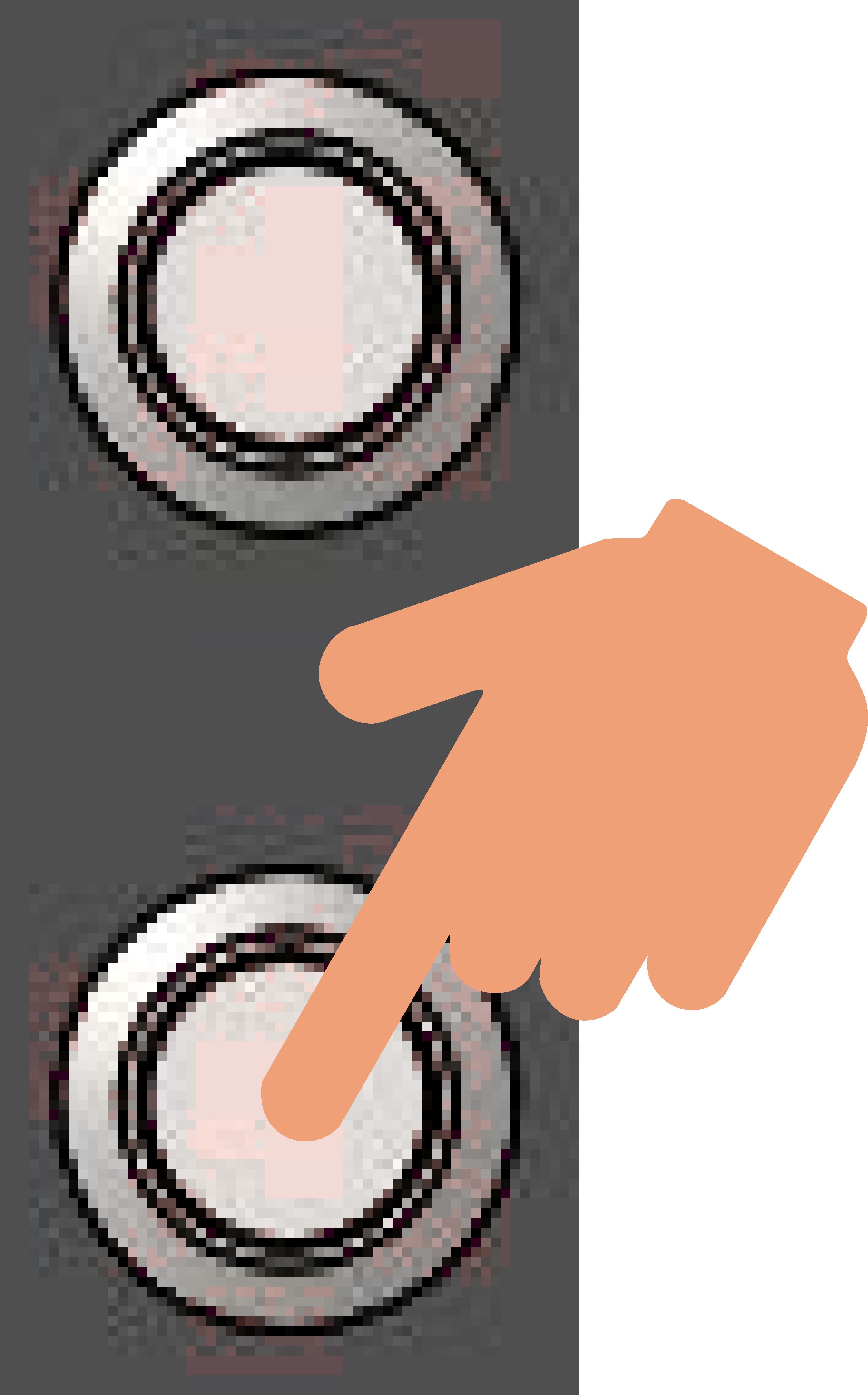

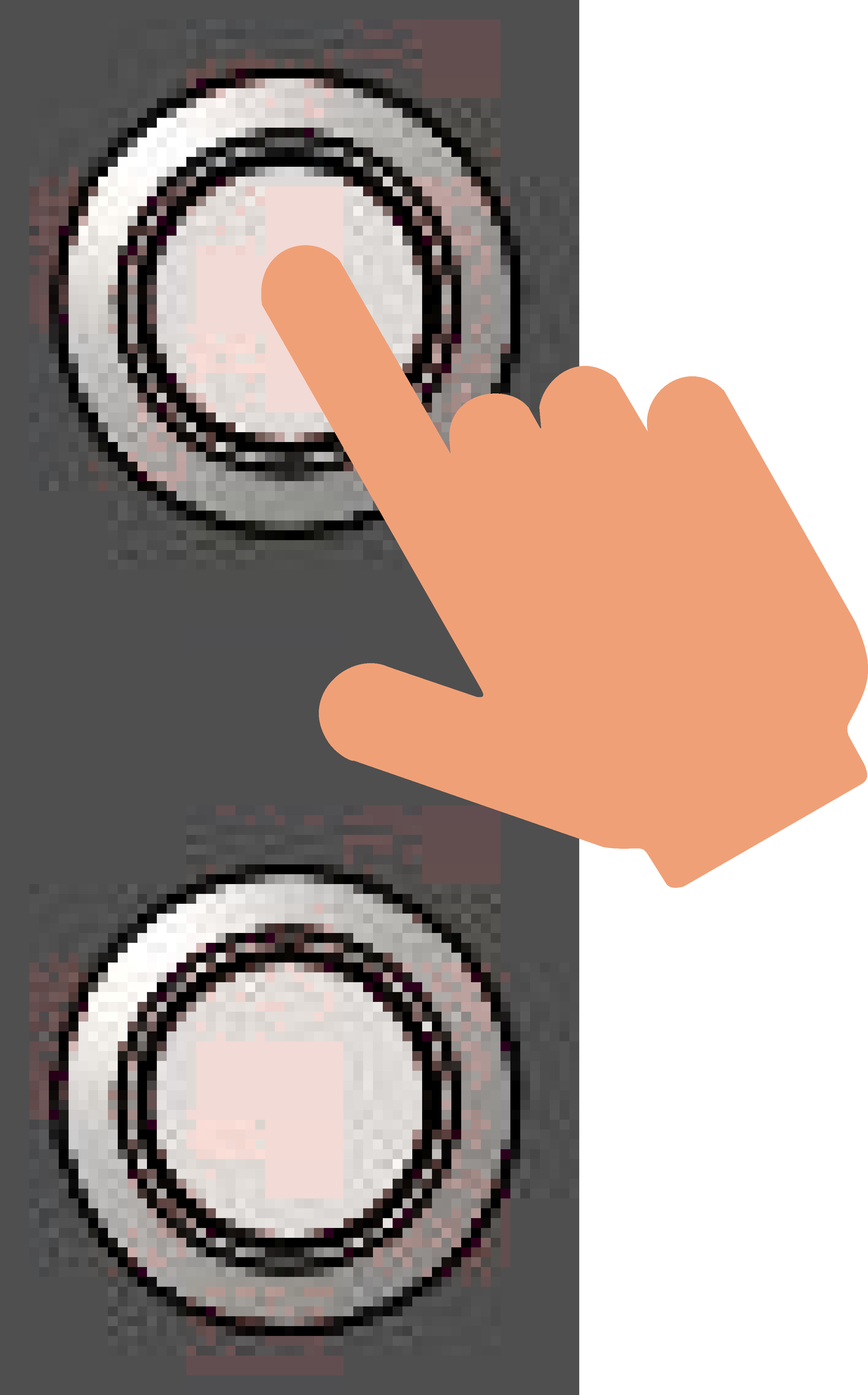

Press key 1 and key 2 to move the axis in jog mode. Key 1 is for positive and key 2 is for negative.

：

Rotate the knob to move the axis in a fixed step. Clockwise is for positive direction, counterclockwise is for negative direction.

：

Press the knob to adjust the step and Jog override (step: 1000 >> 100 >> 10 >> 1, override: 100% >> 50% >> 20% >> 10%).

：

Touch axis icon again. It means the operation is finish while the icon stops blinking.
