5.4 Executing MDI
: |

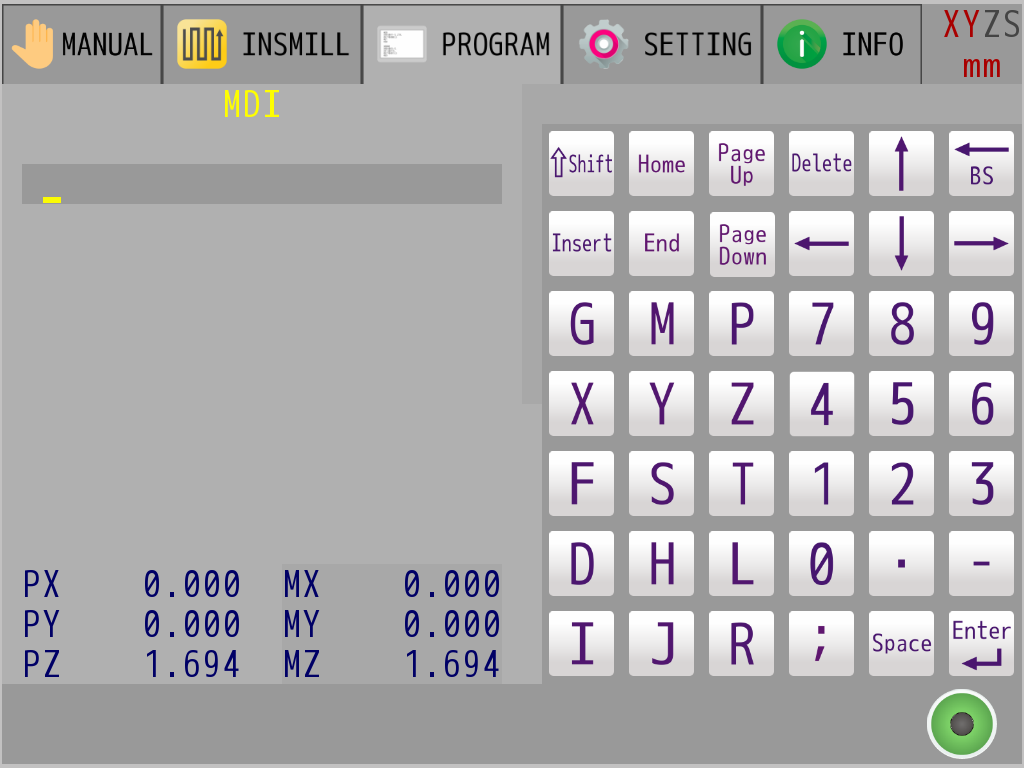

Touch "MDI" button to enter the MDI executing page. |
MDI is applied to execute a single-line command immediately. Be aware of safety while using it.
Operation: How to execute MDI
: |

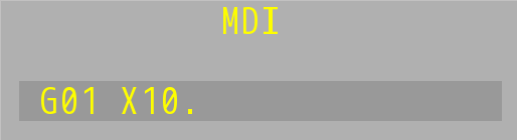

Use the keyboard to enter a single-line command. |
|
: |
Press key 1 to confirm the execution. |
|
: |
Press key 2 to quit and return to program page. |
|
: |

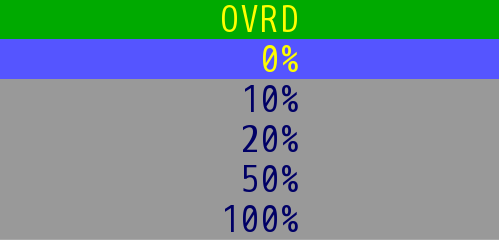

If key 1 is pressed, a feedrate override selecting dialog will pop up. |
|
: |

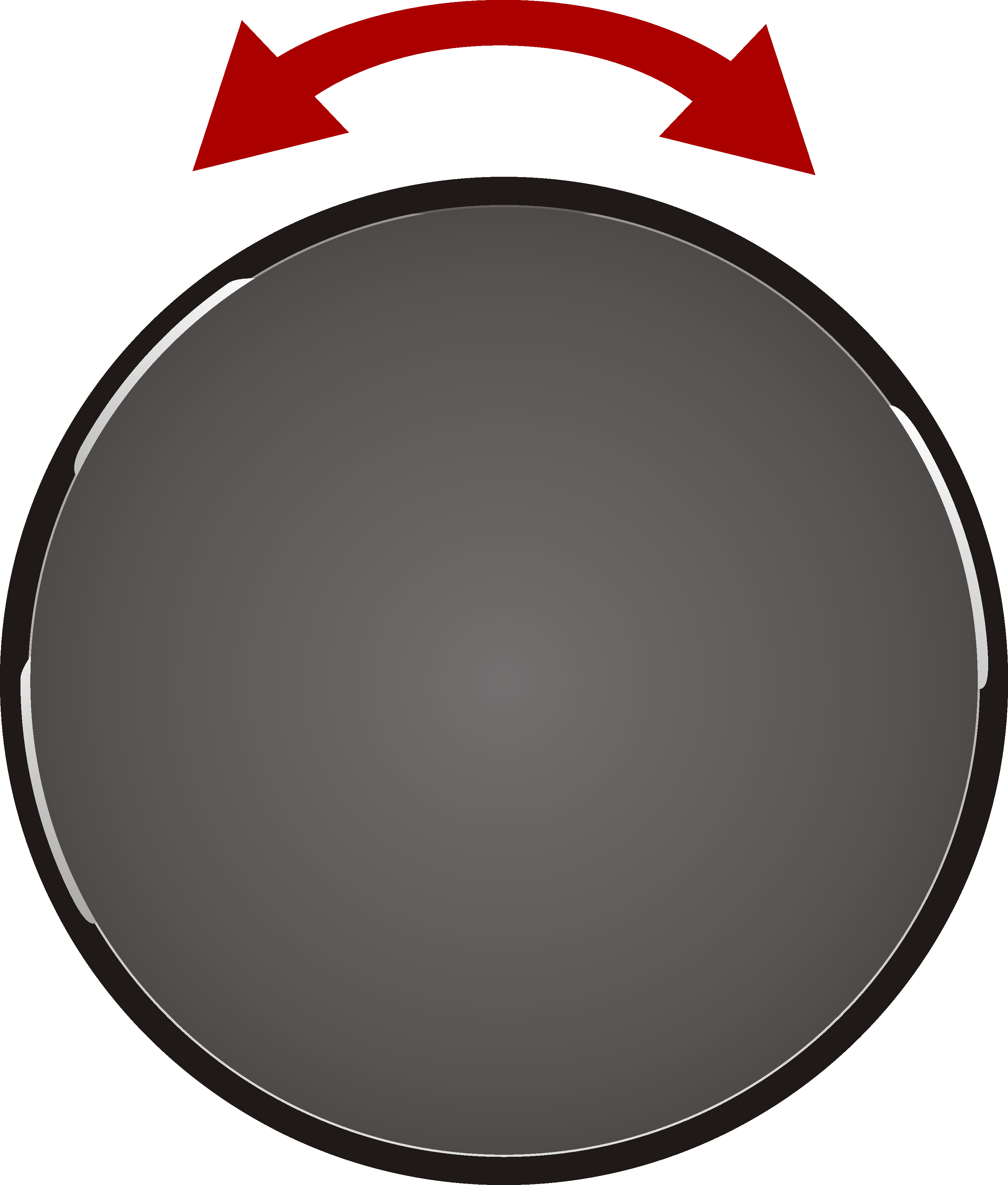

Rotate the knob or touch to select a override value. |
|
: |
Press key 1 to confirm current selected override and start MDI. |
|
: |
Press key 2 to quit this operation. |
|
: |

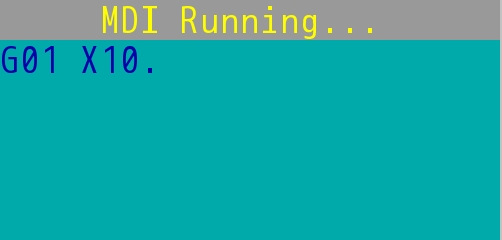

If key 1 is pressed, MDI will start running. |
