5 Program (Only Available on XYZS)


Touch "PROGRAM" tab to enter program page.

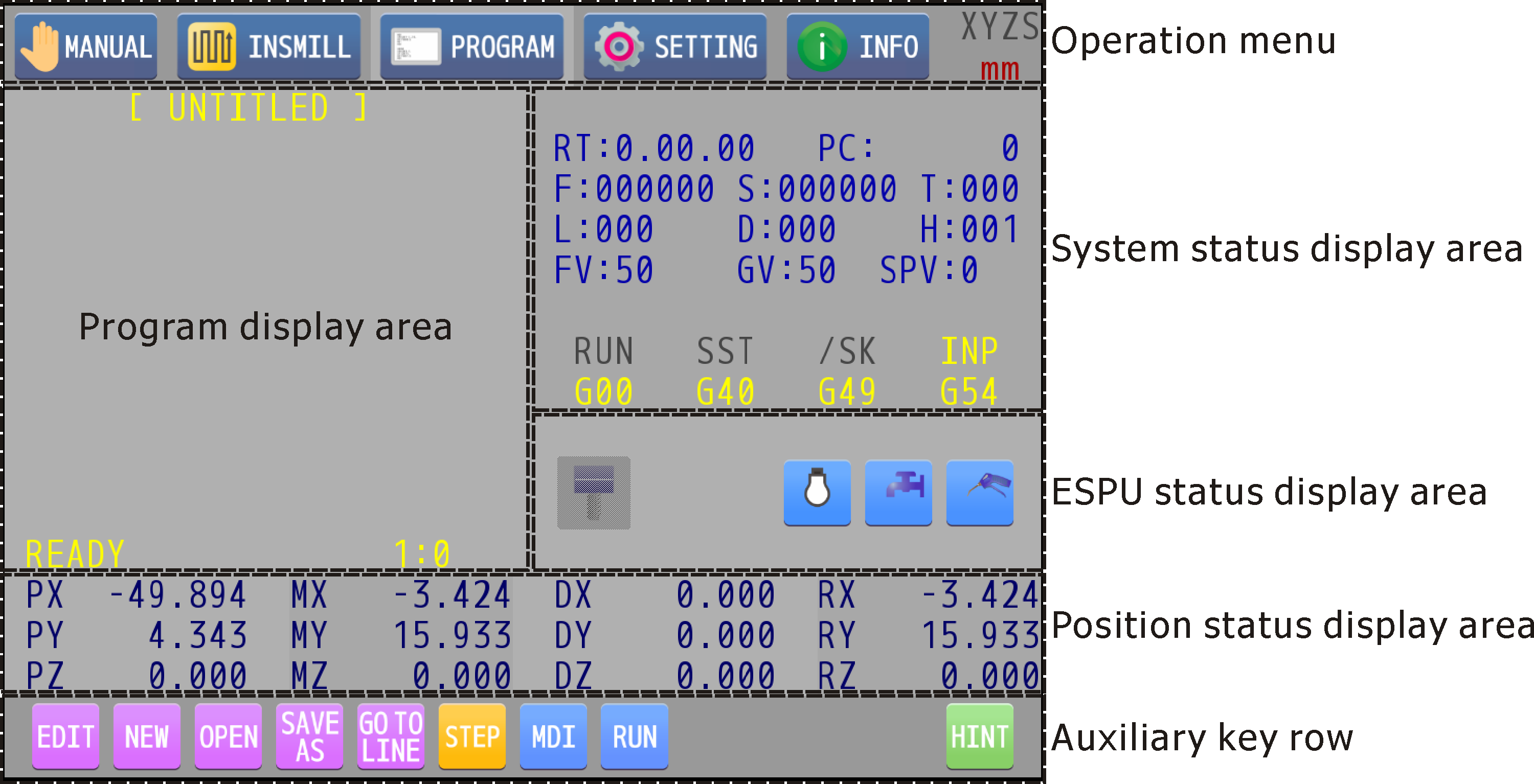

Program page is divided into six parts: operation menu, program display/editor, system status display area, ESPU status display area, position display area, and auxiliary key row, as shown below.

：

Rotating knob can move up/down the cursor of program editor.

：

Press the knob to switch on/off single-step execution mode.


Program display/editor


The content of the program to be executed or edited is shown in the program display/editor area. The name of current program is shown on the top of this area. If the program has not been stored in a certain name, it shows "UNTITLED".

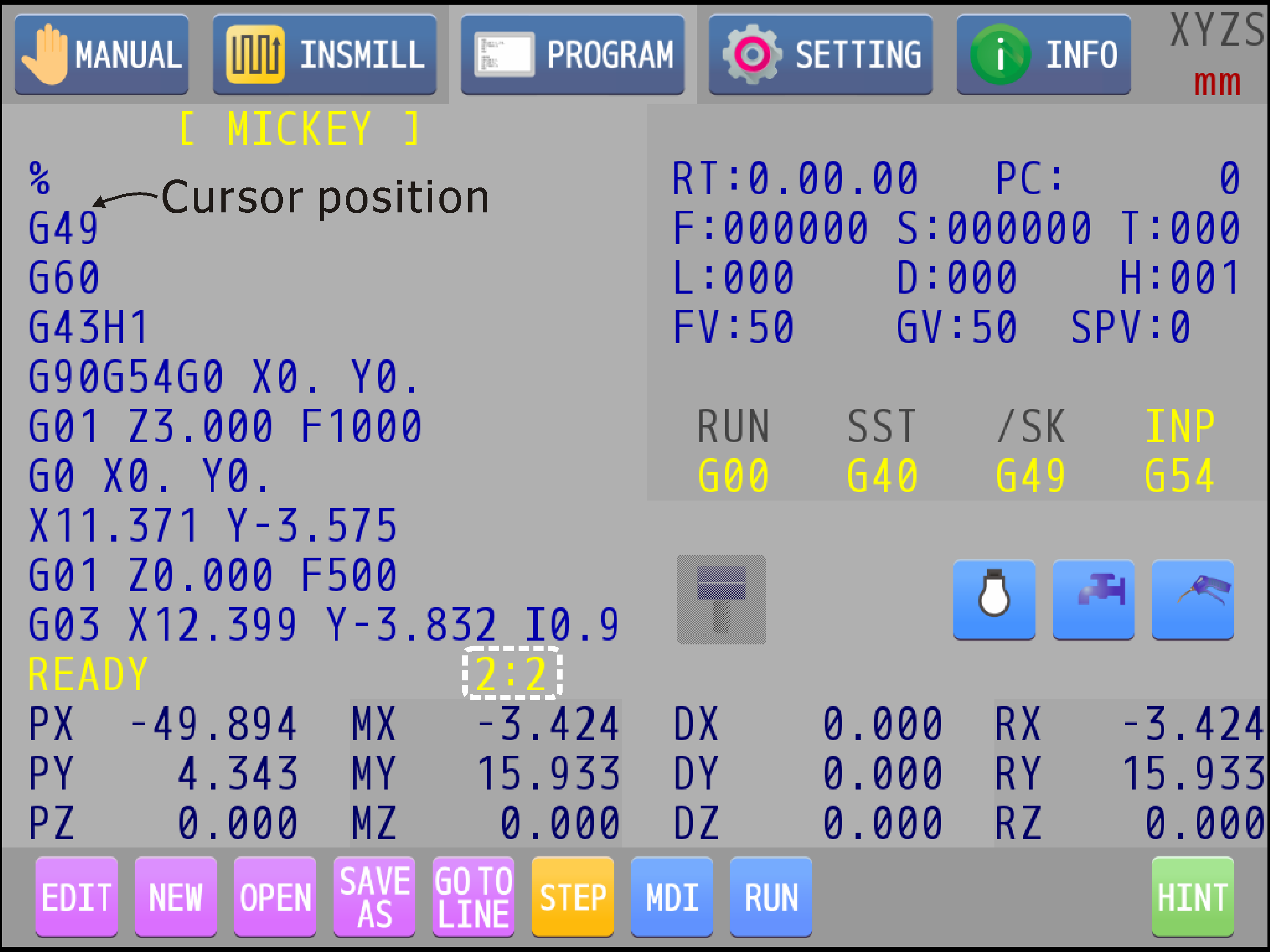

Bottom left of this block shows "2：2" to indicate that cursor is at the second word of second line now, as shown below.
