3.8 Display of Spindle Status (Only Available on XYZS)
This feature is enabled when there is ESPU.
In manual mode, status of spindle CW/CCW/Stop is controlled by inputs on ESPU. Please refer to the description of TB2 in 8.3 Interfaces on ESPU.
|
： |

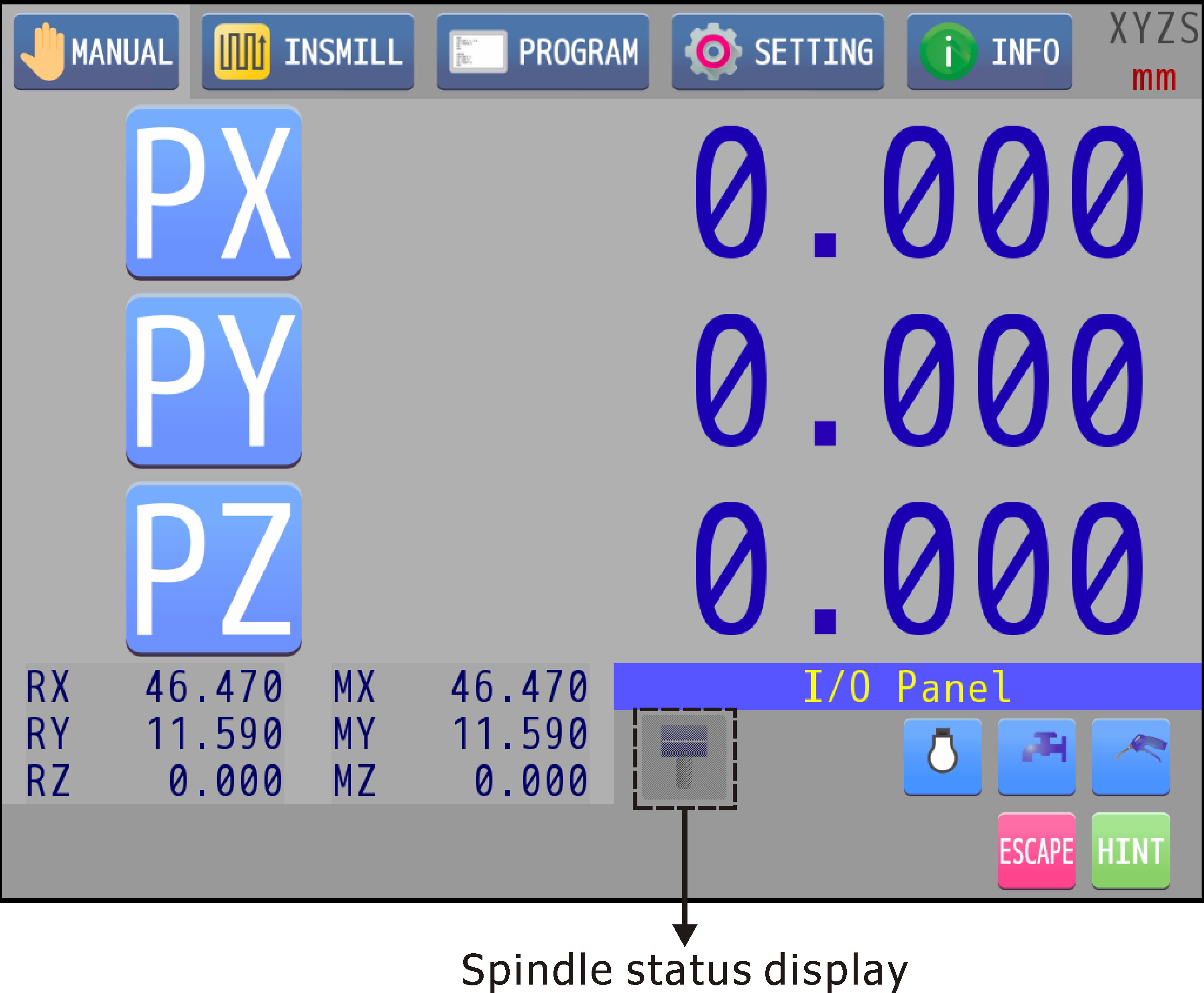

Spindle status display (spindle CW, spindle CCW, spindle stop). |
|
： |
Touch "SPINDLE RPM" icon below. |
|
： |

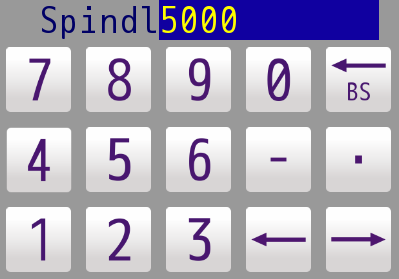

Spindle rpm input window appears. |
|
： |
Use the keyboard to enter value. |
|
： |
Press key 1 to confirm the entered spindle speed. |
|
： |
Press key 2 to quit this operation. |
Spindle control, spindle override |
： |
Follow the second panel setup operation. |
