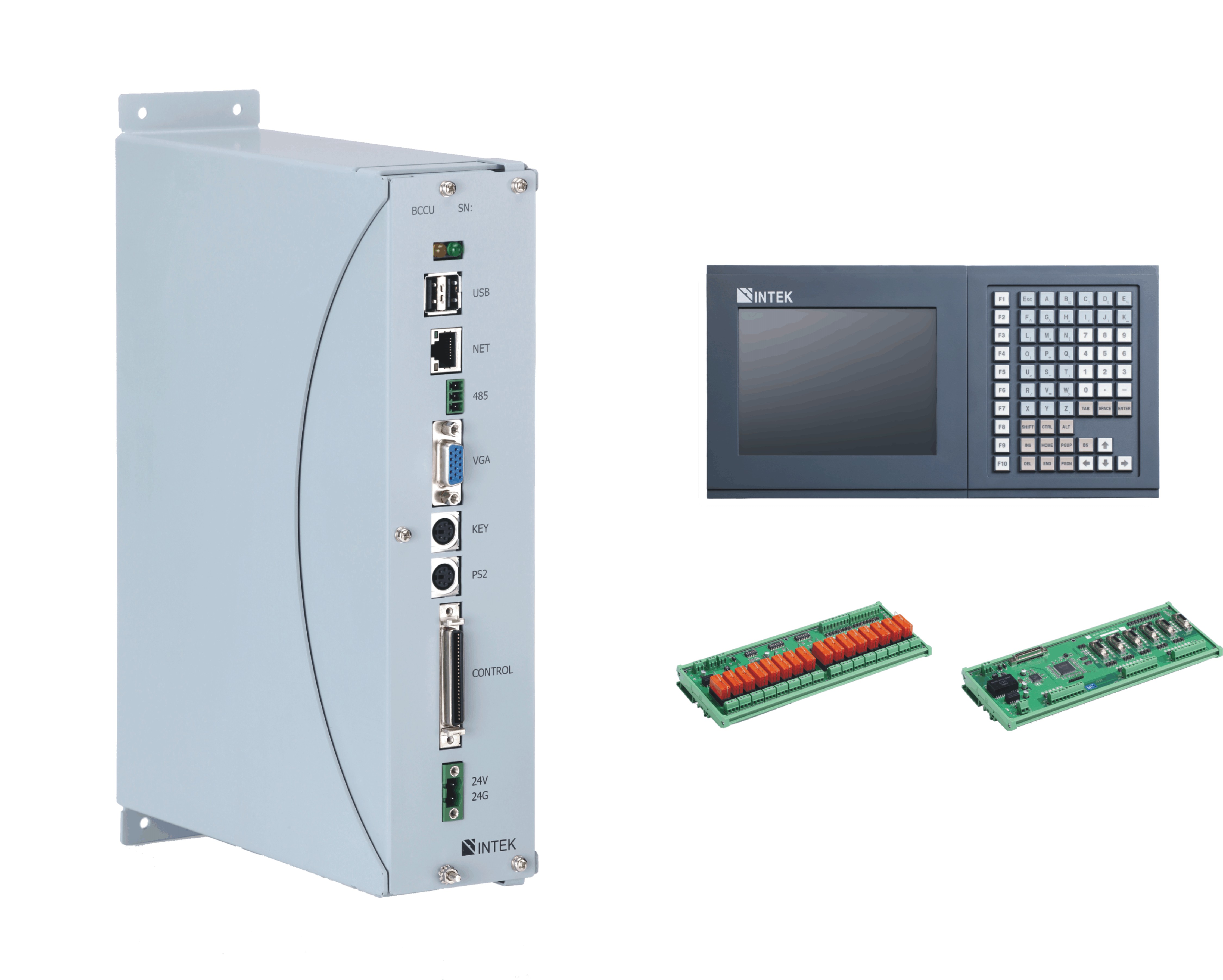

M470 Milling CNC Controller

• M470 is a new generation, advanced milling CNC controller which has four simultaneous axes, one set of spindle speed control, 25 sets of HSHP modes and closed-loop control.
• The fourth axis can be linear axis, simultaneous axis or normal axis. The rigid tapping speed is up to 8000 rpm.
• M470 has built-in network function, and can be connected to PC for uploading or downloading CNC part programs.
• I/O points of PLC are 38 I/P and 32 O/P, and the points can be added up to 262 I/P and 256 O/P.
• USB function expands storage space and enhances the portability of program files.
• Typical application: 4-axis milling machine, machining center, engraving machine, engraving center, horizontal machine center, double column machine center, gantry type milling machine and gantry type machine center, etc.
• This product is controlled by Strategic High-Tech Commodities (SHTC) regulations, for further information, please contact Sales Department of Intek Technology.

Feature Advanced 4-axis milling machine CNC controller Velocity command, incremental encoder feedback, closed-loop control Standard G, M, S, T codes and complete compensation mechanism Handy user interface HSHP MACRO Built-in FTP server USB function 500 MB storage space M470 Optional Function Advanced HSHP ABS encoder

Option 10.4" operational panel unit (INCON-GKYU-104-H-S) General analog unit (IUNT-GEAU) General I/O unit (IUNT-GEXU-HD, 16 pieces at most) Document Download Brochure User manual Integration manual PLC manual Facebook
