3.2.2 Move to Park Point
: |

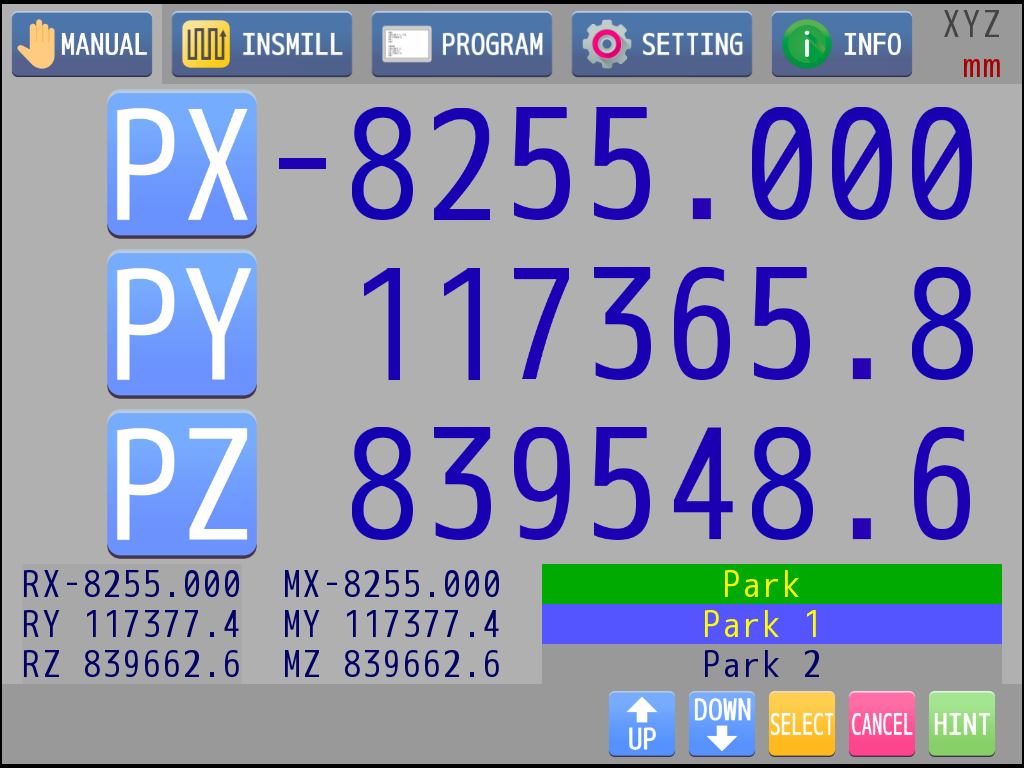

The Park dialog will appear at this time. |
|
: |
Rotate the knob or touch to select the desired Park point to go. |
|
: |
Press key 1 to select current Park point. |
|
: |
Press key 2 to quit this operation. |
|
: |
After pressing key 1, an override selection menu appears. |
|
: |
Rotate the knob or touch to select the override you want. |
|
: |
Press key 1 to confirm the selection of the override. |
|
: |
Press key 2 to quit this operation. |
|
: |
Knob rotating can increase or decrease the override during the movement. |
Note: Position of Park 1, 2 are set in macro variable 91~96. Please refer to 6.3.1.
