8.4 Dimension Drawing

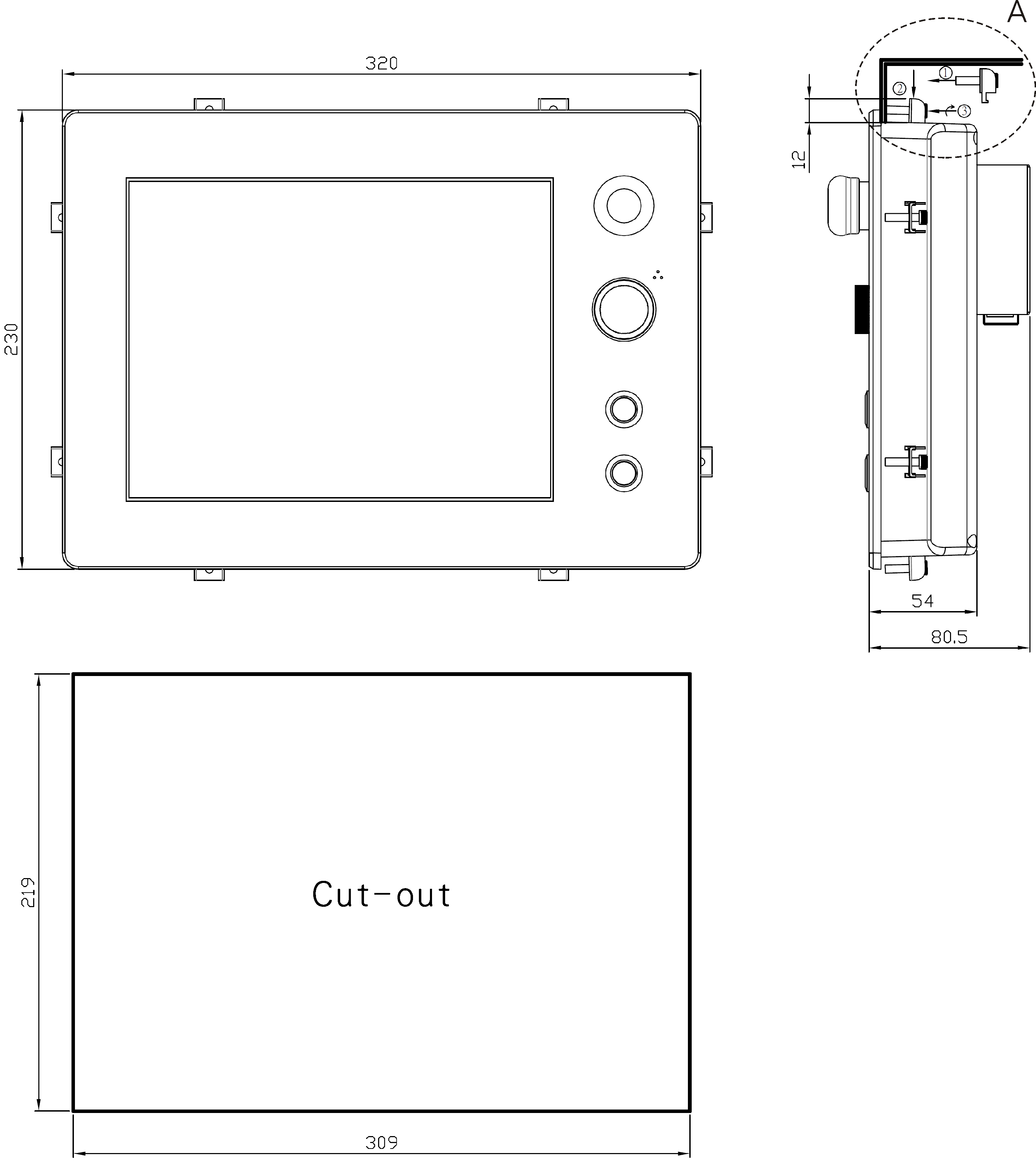

Dimensions of TPCU

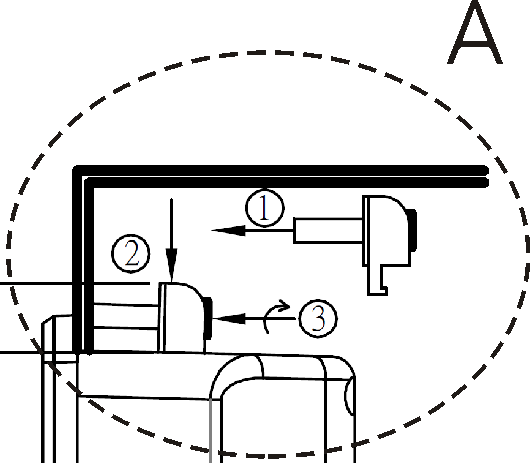

A Drawing of Partial Enlargement
TPCU has 4 fasteners as accessory, which provide user to fix TPCU on sheet metal. The installation steps are as follows:
1. |
Put TPCU into the hole of sheet metal, then align the fastener to the hole on the side of TPCU. |
2. |
Hook the fastener on the hole of TPCU. |
3. |
Tighten the screw on the fastener, until it push on the sheet metal. |

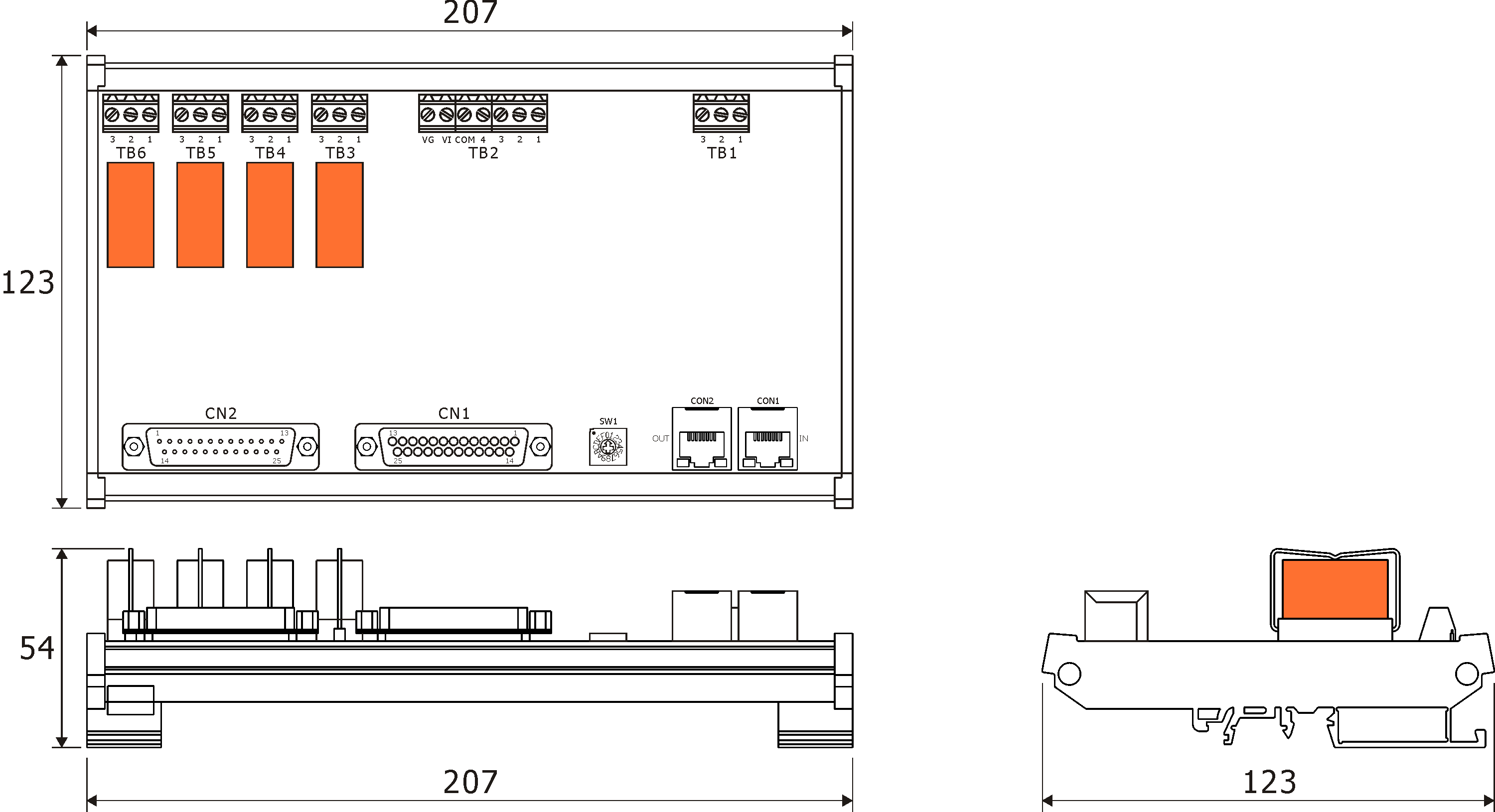

Dimensions of ESPU
