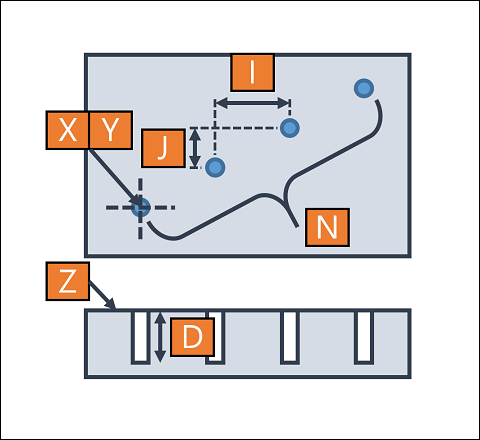

X OriginX

The distance from the origin of workpiece to the first point of the array in X direction.

Y OriginY

The distance from the origin of workpiece to the first point of the array in Y direction.

Z StartZ

The distance from the origin of workpiece to the upper surface of removed area in Z direction.

D Depth

Depth of removal.

I DeltaX

The distance between two neighboring holes in X direction.

J DeltaY

The distance between two neighboring holes in Y direction.

N Count

Count of holes.

ToolNumber

Order of desired tool in tool table.

SpindleRPM

Rotating speed of spindle.

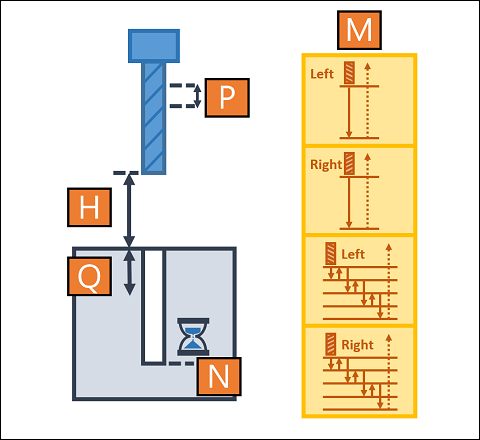

H ZUpper

Z axis would halt at this position which is related to StartZ before and after tapping.

M HoleMode

SimpleL

Tapping to the designated depth directly with left-handed thread.

SimpleR

Tapping to the designated depth directly with right-handed thread.

PeckL

Lift Z up a fixed distance after every step of tapping until reaching the designated depth. Left-handed thread.

PeckR

Lift Z up a fixed distance after every step of tapping until reaching the designated depth. Right-handed thread.

P Pitch

Pitch of the thread.

Q StepDepth

Depth per drilling of peck mode.

N PauseSec

Pause for a while when it reached the bottom of a hole. This setting is only valid on simple tapping.
