6 Setting

Setting page operation

Settings page can be divided into left and right parts. Most operation is performed at the left side. And the right side shows the stack of parameter classifications.

1.	Operation block at left side can be classified into two modes according to the display content:

(1) Menu mode

(2) Input mode

2.	If button appears at the bottom left of setting page, press it to jump back to the top of stack.

3.	While it is in menu mode, user could switch to any other tab. If it is in input mode, tab switching is not allowed in order to ensure that the parameter is modified and saved correctly.

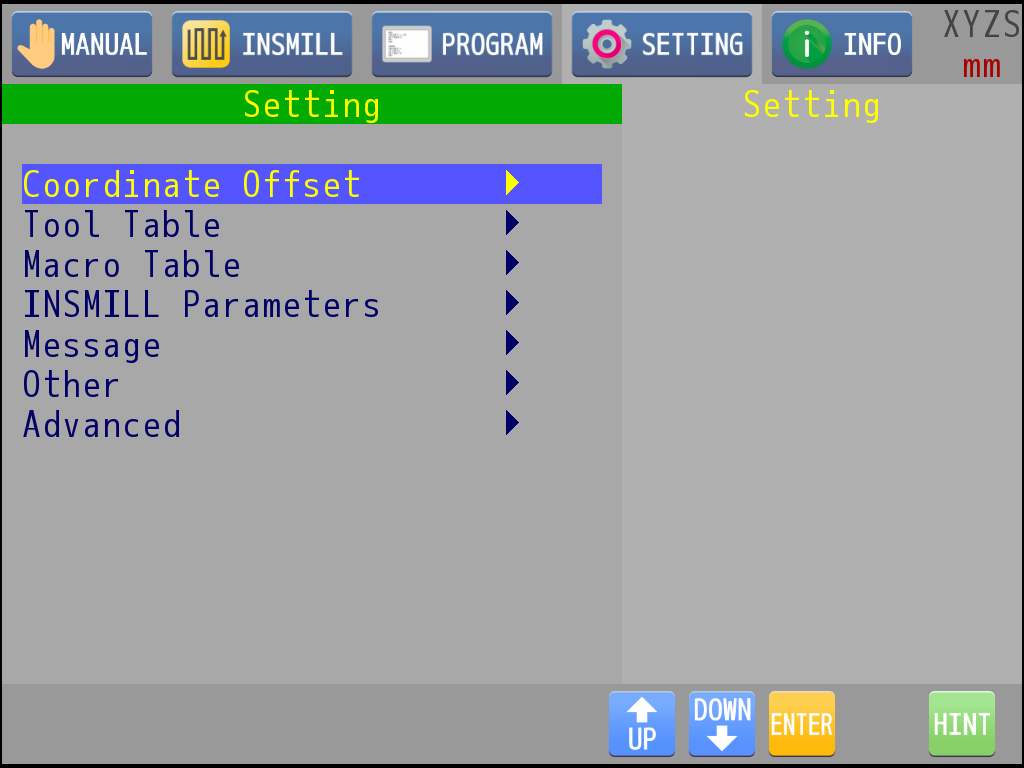

Menu mode

：

Rotate the knob or touch to select setting items.

：

Press key 1 to enter the selected setting item.

：

Press key 2 to leave current stack and return to the upper layer.

If it is already at the origin of settings page, it has no effect.

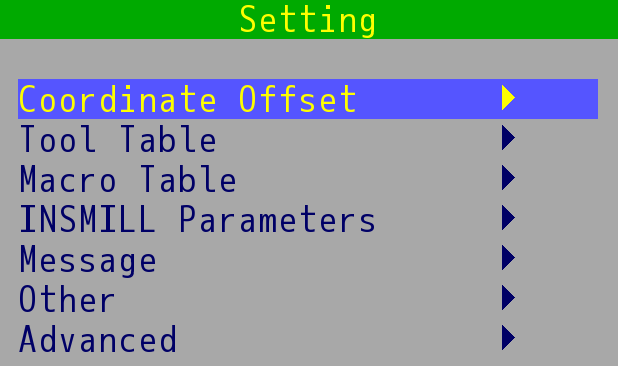

1.	According to the symbols shown on the right side of setting item, it can be divided into following three modes:

(1) Arrow/number icon

When there is numeric value displayed on the right side, it indicates current value of this parameter.

：

Press key 1 to enter the parameter input page.

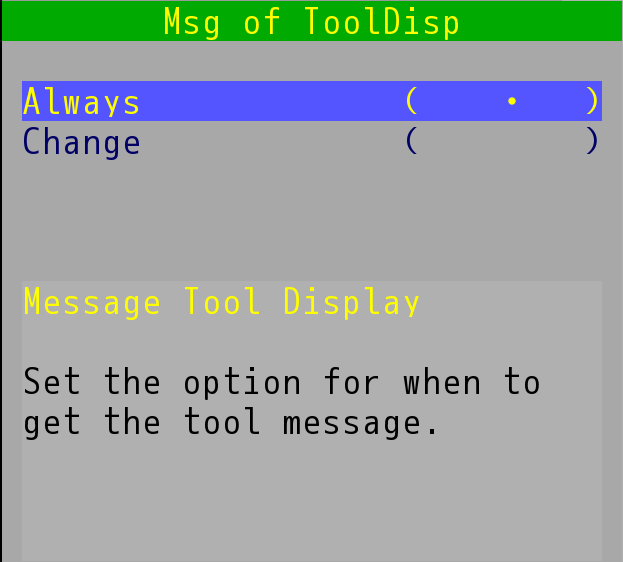

(2) [ ] / ( ) icon

When [ ] or ( ) is shown on the right side, it indicates current selection of this multi-choice parameter.

：

Press key 1 to enter the parameter selecting page.

The operation is same as other selecting page.

(3) No icons

If there is no icon at the right side, it means that this item is a function/action.

：

Press key 1 to execute the function.

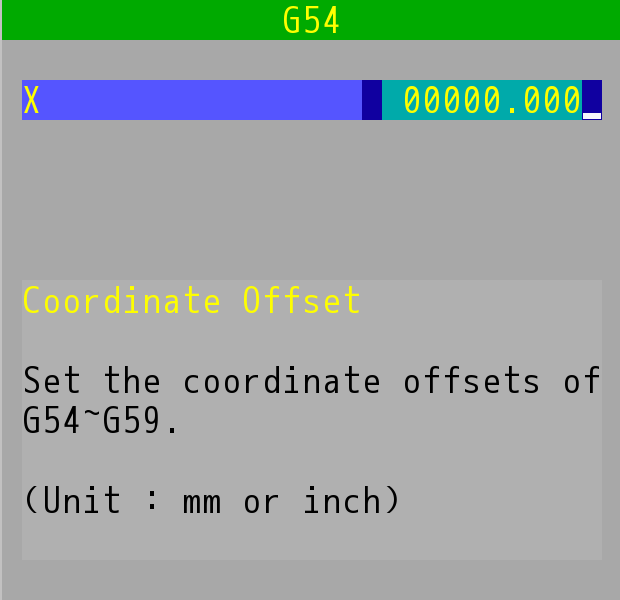

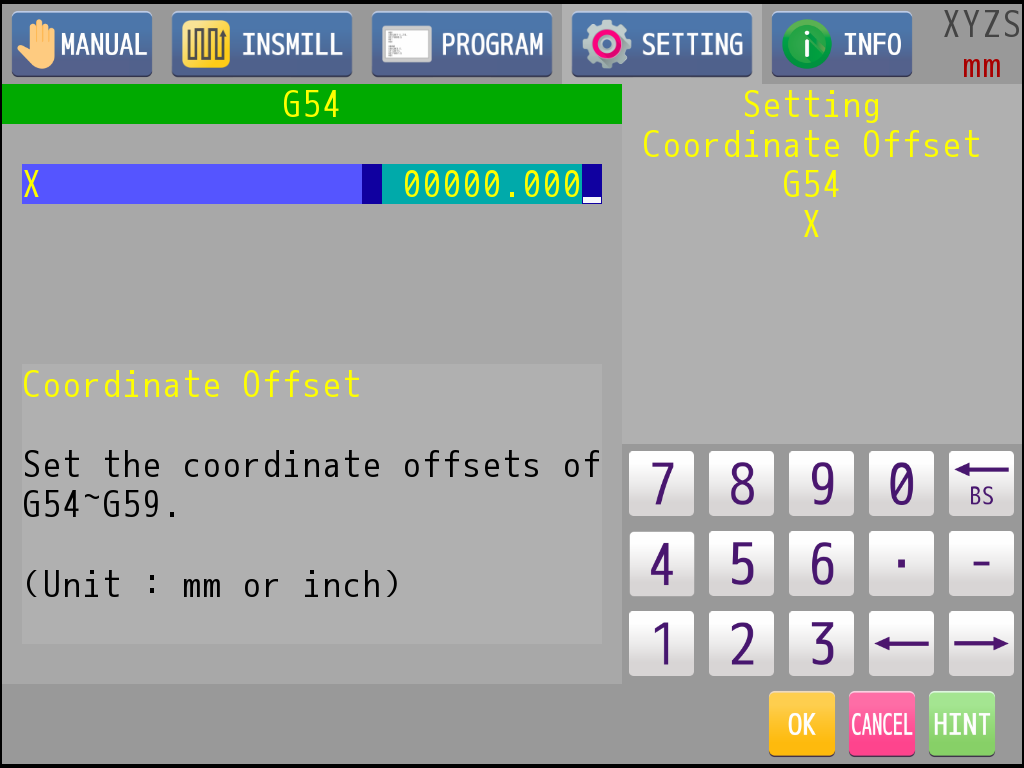

Input mode

	：	Use the numeric keyboard to edit the value.
	：	Press key 1 to save parameters and return to upper layer.

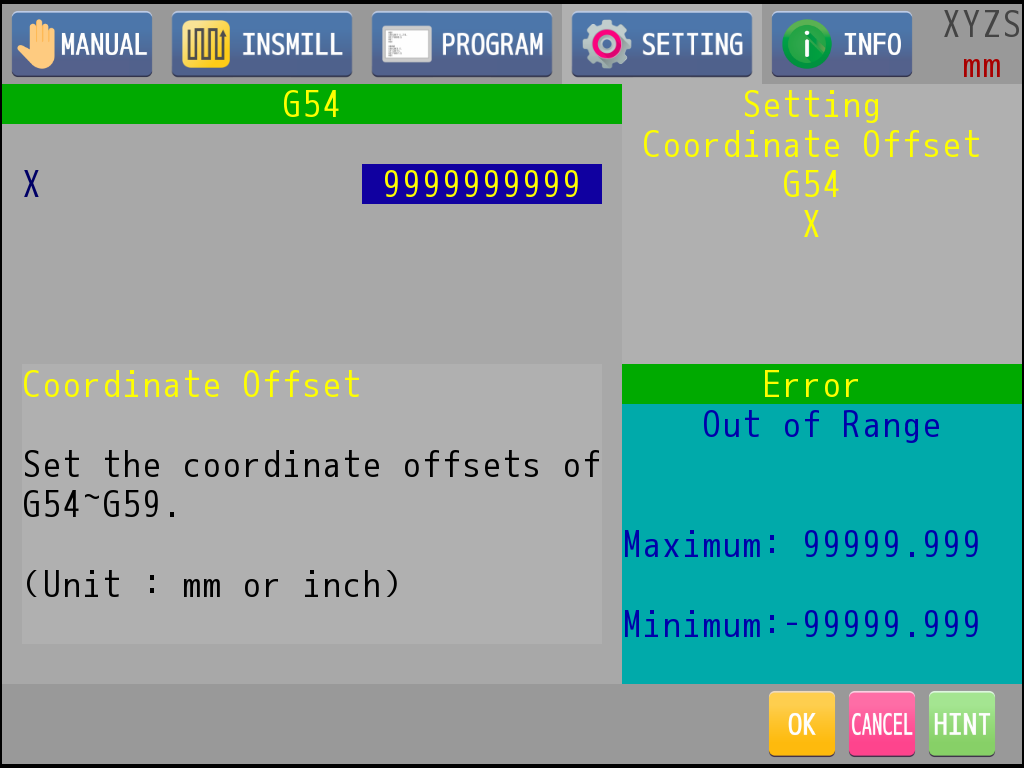

	：	Press key 2 to leave input mode and return to upper layer. If the value is not in the proper range after editing, an error message will pop up at the bottom right.

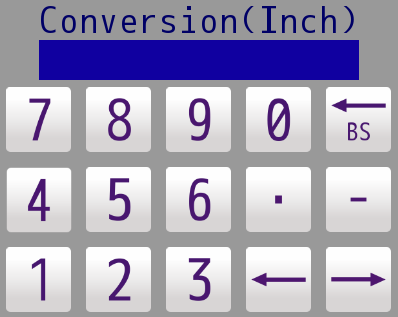

	：	If button appears at the bottom left of setting page, open the imperial converter by pressing it. After confirm the entered value, system will convert the value into metric and display in the input column.
