9.15 Text Engraving

Text engraving means a down cutting to designated depth move along the user-defined text string.

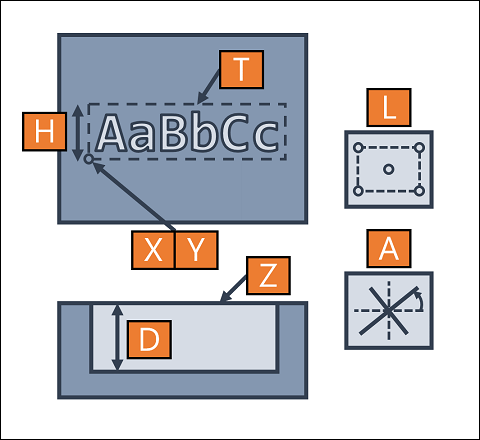

Geometry

X CenterX		The distance from the origin of workpiece to the origin of the contour in X direction.
Y CenterY		The distance from the origin of workpiece to the origin of the contour in Y direction.
Z StartZ		The distance from the origin of workpiece to the upper surface of removed area in Z direction.
T Text		User-defined text string.
H FntHeight		Height of text.
D Depth		Depth of removal.
L Alignment	LowerLft	Locating point is at lower left of the text.
	LowerRgt	Locating point is at lower right of the text.
	UpperLft	Locating point is at upper left of the text.
	UpperRgt	Locating point is at upper right of the text.
	Center	Locating point is at center of the text.
A Rotate		A counterclockwise rotation around the origin of the contour with designated angle.

Note:

Move the cursor to any character and press "LETTER CASE" button while editing the text string. The selected character will change in following patterns.

Uppercase Letter → Lowercase Letter
Lowercase Letter → Uppercase Letter
. → ,
- → _
* → ^
/ → \
; → : → ! → ? →‘ → “
( → [ → { → <
) → ] → } → >
# → % → & → $ → @ → ~

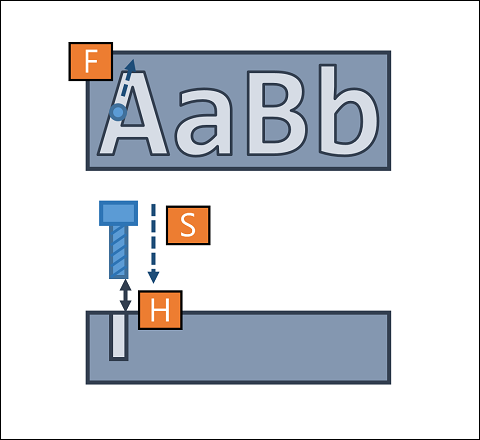

Manufacture

ToolNumber		Order of desired tool in tool table.
SpindleRPM		Rotating speed of spindle.
SpindleDir	CW	Spindle rotates in CW.
	CCW	Spindle rotates in CCW.
H ZUpper		Z axis would halt at this position which is related to StartZ before and after cutting.
F Feedrate		Feedrate of XY moving. (mm/min)
S ZDirFeed		Feedrate of Z moving. (mm/min)
