9.9 Contour Island Milling
Contour island milling means a repeatedly down cutting to designated depth with a remained user-defined closed contour island at the center.

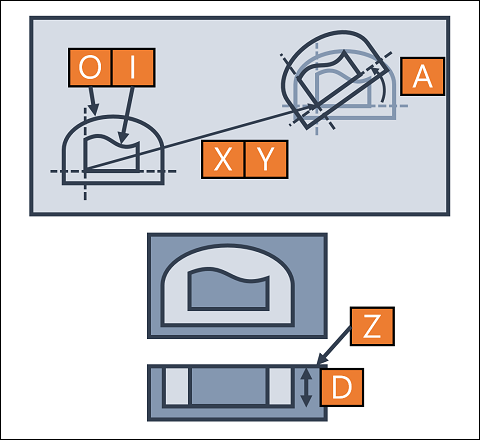

Geometry
X CenterX |
The distance from the origin of workpiece to the origin of the contour in X direction. |
Y CenterY |
The distance from the origin of workpiece to the origin of the contour in Y direction. |
Z StartZ |
The distance from the origin of workpiece to the upper surface of removed area in Z direction. |
O OutContour |
User-defined outer contour. |
I InContour |
User-defined inner contour. |
D Depth |
Depth of removal. |
A Rotate |
A counterclockwise rotation around the origin of the contour with designated angle. |

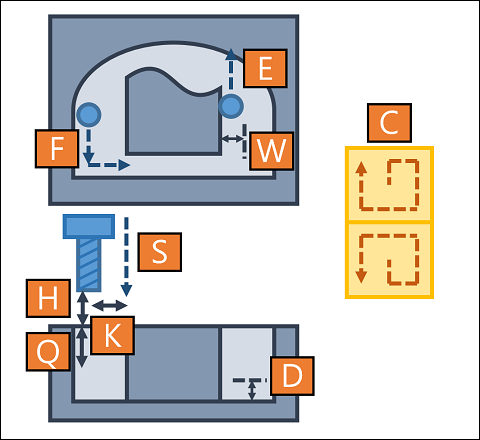

Manufacture
ToolNumber |
Order of desired tool in tool table. |
|
SpindleRPM |
Rotating speed of spindle. |
|
SpindleDir |
CW |
Spindle rotates in CW. |
CCW |
Spindle rotates in CCW. |
|
H ZUpper |
Z axis would halt at this position which is related to StartZ before and after cutting. |
|
C CutDir |
CW |
Direction of cutting route is CW. |
CCW |
Direction of cutting route is CCW. |
|
K StepWidth |
Width per cut. Must less than the diameter of selected tool. Set in percentage of tool diameter. |
|
Q StepDepth |
Depth per cut. Must less than or equal to Depth of geometry. |
|
W FineWidth |
Width of fine cut. Set to 0 if none. Must less than or equal to StepWidth and tool radius. |
|
D FineDepth |
Depth of fine cut. Set to 0 if none. Must less than or equal to StepDepth. |
|
F Feedrate |
Feedrate of XY moving. (mm/min) |
|
S ZDirFeed |
Feedrate of Z moving. (mm/min) |
|
E FineFeed |
Feedrate of fine cut. (mm/min) |
|
